LC60CF-Foldable-LED-Poster-Display-2

LC60CF Series

Foldable All-in-One Poster LED Display

-655×2060×60mm LED Banner Size

-Ultra Slim and Lightweight

-Seamless Multi-Screen Splicing

-Innovative Foldable Dual-Sided Design

-Smart Cloud Management

-Flight Case with Ramp Board Design

-P1.25, P1.538 (GOB Necessary), P1.86, P2 & P2.5mm (GOB Optional)

Inquiry Now
High contrast unit led display
Reliable performance unit led display
Fast assembly unit led display
high refresh rate unit led display
16bit gray bit unit led display
UNIT LED display
UNIT LED display
160 wide viewing unit led displaypng

Ultra-Light All-in-One Design LED Poster

LC60CF series LED poster display screen features a seamless, all-in-one body and 320x160 mm LED modules, ensuring a clear and bright display effect.

The product dimensions are 655×2060×449mm, the display size is 640×1920mm, and it weighs only 44 kg, making it lighter and thinner than traditional LCD advertising machines.
Inquiry Now
New

Durable Structure & Perfect Flatness

Built from a profile cabinet and a cold-rolled steel base, ensuring stability and resistance to deformation.
The screw-mounted LED modules provide excellent surface flatness and display consistency.

Smart Centralized Control

LC60CF makes it easy to manage multiple screens remotely through a cloud-based platform. Schedule, edit, and distribute advertising content anytime via WiFi, 4G/5G, RJ45, or USB.

High Performance & Stability

UNIT LC60CF is equipped with an industrial-grade embedded motherboard, a quad-core CPU (≥1.4GHz), and 4K decoding support, ensuring smooth operation, virus-free stability, and 24/7 continuous performance.
Inquiry Now

Flexible Display & Splicing Options

LC60CF supports folding transformation, switching from single-sided to double-sided display in seconds.
Multiple units can be seamlessly spliced for a larger video wall effect, with flip-cover protection for easy maintenance.

Easy Mobility & User-Friendly Design

Integrated Fuma universal wheels (each capable of supporting over 50kg) and adjustable feet make movement and installation effortless.
The flight case with a ramp board design allows even one person to transport and install easily, compatible with rental applications.

Energy Saving & Smart Adjustment

Designed for 7×24-hour stable operation, the LC60CF supports automatic brightness control, scheduled rebooting, and remote management of power, sound, and display settings, reducing energy consumption while ensuring reliable performance.
Inquiry Now

Enhanced Protection & Optional Functions

Optional GOB coating provides resistance to water, dust, and static.
Supports GPS synchronization, dual WiFi mode, and stereo audio output, offering multiple value-added functions for professional applications.

LC60CF Foldable Poster LED Display

  • All-in-one LED Poster Screen, Plug and Play
  • Seamless Splicing Display
  • Slim & Lightweight Design
  • Smart Cloud Management
  • CE,Rohs Approved
  • 3 Year Warranty and 5% Spare Part
Find More

Get Price Now

LC60CF Series

LC60CF Front View
Front View

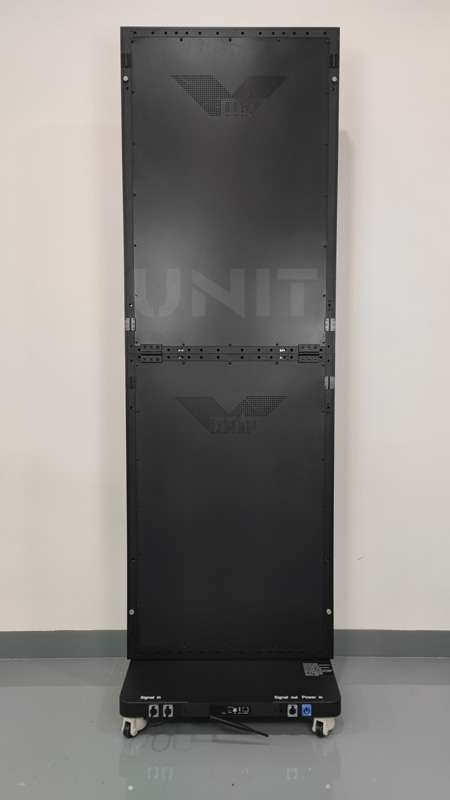

LC60CF Back View
Back View
LC60CF Side View
Side View
LC6OCF Inner View 1
Inner View
LC6OCF Inner View 2
Inner View
LC6OCF Inner View 3
Inner View
LC60CF Front and Side View 2
Front and Side View
LC60CF Front and Side View 1
Front and Side View
LC60CF Front and Side View 3
Front and Side View
LC60CF Back and Side View 2
Back and Side View
LC6OCF Details 1
Details
LC60CF After Folding 1
After Folding
LC60CF After Folding 2
After Folding
LC60CF After Folding 3
After Folding
LC60CF After Folding 4
After Folding
LC6OCF Openable Frame
Openable Frame
LC6OCF Openable Frame Side View
Openable Frame Side View
LC6OCF Openable Frame Front View
Openable Frame Front View
LC6OCF Openable Frame 3
Openable Frame
LC6OCF Details 2
Details
LC60CF Folding Details
Folding Details
LC6OCF Inner
Inner
LC6OCF Module Front View
Module Front View
LC6OCF Module
Module
LC6OCF Module back and side view
Module Back and Side View

LC60CF Series (Marble Texture)

Marble Lit
Marble Lit
Marble Lit
Marble Lit
Marble Internal Detail
Marble Internal Detail
Marble Series
Marble Series
Marble Folded
Marble Folded
Marble Folded Lit
Marble Folded Lit

LC60CF Series (Painted Texture)

Side View
Side View
LC60CF Lit
LC60CF Lit
Internal View
Internal View
Internal Detail
Internal Detail
Front View
Front View
Front Side View
Front Side View

Videos Center

Specification

LC60CF Series
LED Type SMD1212 SMD1515 SMD1515 SMD2020
Pixel Pitch (mm) P1.538 (GOB) P1.86 P2 P2.5
Product Size (W × H × D) (mm) 655 x 2060 x 449
Display Area (W × H) (mm) 640 x 1920
Resolution 416 x 1248 344 x 1032 320 x 960 256 x 768
Net Weight (kg) 44
Material Aluminum Profile + Steel Base
Module Size (W × H) (mm) 320 x 160
Brightness (nit) 600
Refresh Rate (Hz) 3840
Color Temperature (K) 9000 ± 1000
Viewing Angle (H/V) (°) 140 / 140
Driving Method 1/52 Scan 1/43 Scan 1/40 Scan 1/32 Scan
AC Operating Voltage (V) 200 – 240
Power Consumption (Max / Avg) (W/Set) 490 / 163
Storage Temperature (°C) -40 ~ +60
Operating Temperature (°C) -10 ~ +40
Storage Humidity (RH) 10% ~ 90%
Operating Humidity (RH) 10% ~ 90%
Ingress Protection (Front/Rear) IP40 / IP20
LED Lifespan (H) 100,000
Module Maintenance Rear Maintenance
Power Supply & Other Maintenance Rear Maintenance
Seamless Splicing Supported
Foldable Design Backward Half-Fold Design
Installation Method Floor Stand / Splicing Installation
Download LC60CF Specifications
