Professional Comparison of LCD and LED

For some customers, such as small advertising screen, small meeting display screen, customers will still struggle to choose between LCD and LED display. In the following article, we will explain the difference between LCD and LED in detail, so that customers will not have to worry about choosing a small screen.

1.What is LCD?

Liquid Crystal Display (LCD) is short for Liquid Crystal Display (LCD). There are mainly TFT, UFB, TFD, STN and other types. Its structure includes plastic sphere, glass sphere, frame adhesive, glass substrate, upper polarized plate, directional layer, liquid crystal, conductive ITO pattern, conduction point, IPO electrode and lower polarized plate.

1.1 Basic Structure of LCD

Take Colliers Hi-Tech LCD advertising machine as an example, it uses the most well-known TFT-LCD is a thin film transistor LCD display.Its basic structure is placed in the middle of the two pieces of parallel glass liquid crystal box, the substrate glass set on thin film transistor (TFT), on the base plate glass on set color filter, signal and the voltage change on the thin film transistor to control the rotation direction of the liquid crystal molecules, so as to achieve control of each pixel display emergent polarized light or not and to achieve.

1.2 TFT structure

The principle of liquid crystal display is that liquid crystal under the action of different voltage will show different optical properties. Liquid crystal display is composed of many liquid crystals arranged in an array, in a monochrome LCD screen, a liquid crystal is a pixel (the smallest unit that can be displayed on a computer screen), and in a color LCD screen, each pixel is composed of red, green and blue liquid crystals.

At the same time, it can be considered that there is an 8-bit register behind each liquid crystal, and the value of the register determines the brightness of each of the three liquid crystal cells. However, the value of the register does not directly drive the brightness of the three liquid crystal cells, but is accessed through a “palette”.

It is not practical to equip each pixel with a physical register. In fact, only one line of registers is provided. These registers are connected to each line of pixel in turn and loaded into the contents of the line.

1.3 Advantages of LCD Screen

(1) High Resolution

(2) The brightness is suitable.

The brightness of the LCD splicing screen is the same as that of the TV, which is suitable for long-term viewing without glare

(3) High Contrast

LCD splicing screen light and dark contrast is strong, the picture is rich and delicate.

(4) Stable and Durable, Low After-sales Rate

The use rate of LCD splicing screen is low in the later maintenance, which can greatly reduce the later use cost of LCD splicing screen.

LCD SCREEN

1.4 Defects of LCD Screen

(1) There is a patchwork
The traditional LCD splicing screen is limited by the LCD panel itself, and there will be a border around the screen.

So the splicing will form a few millimeters wide splicing gap, which looks like a black edge. If it is displayed in full screen, the viewer experience will be affected.

(2) Only for Indoors
The LCD splicing screen is mainly LCD panel, internal electronic components, not waterproof, can only be used in indoor dry environment.

2. What is LED?

LEDs stands for light emitting diodes. To put it simply, LCD and LED are two different display technologies. LCD is a display made up of liquid crystals, while LED is a display made up of light-emitting diodes.

We will not explain the principle and composition of LED here.

2.1 Advantages of LED Screen

(1) Seamless splicing

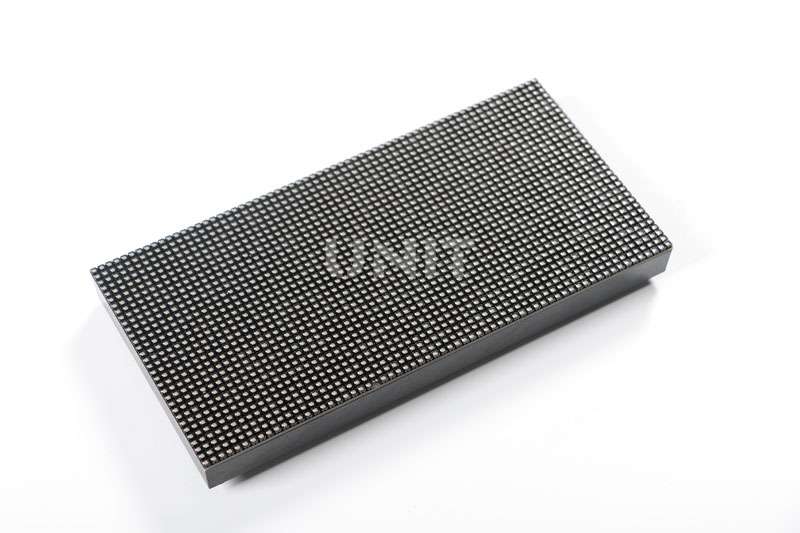

The LED display is composed of a number of modules, and there is no obvious joint between the modules, and it will not have a border like the LCD splicing screen, so it will not be blocked and affect viewing.

(2) Waterproof against high and low temperatures

LED display high level of protection, can be used in a variety of harsh outdoor environments, wind and rain are not afraid, so most of the outdoor large screen is LED display.

(3) Adjustable brightness

The brightness of the LED display can be freely adjusted, in different lighting conditions, can be adjusted to the brightness suitable for human eyes, outdoor bright light can also clearly see the display content.

(4) Installation dimensions are flexible and customization

LED display size can be customized, in addition to the ordinary flat display, can also be made into the naked eye 3D screen, spherical screen, curved screen and other shaped screen, to achieve creative display effect.

led SCREEN

2.2 Disadvantages of LED Screen

(1) Resolution

The resolution of the LED display is much lower than that of the LCD Mosaic screen.

Even the resolution of small-pitch products is difficult to compare with LCD splicing screens, and the smaller the point spacing, the higher the price.

(2) High after-sales service rate

LED display in the common SMD package lamp beads will fall off, dead light and other phenomena, and more frequently, it will increase the after-sales rate and cost.

But at present, our company has activities, the order is sent to the warranty period, after-sales protection.

(3) Required auxiliary cooling

If installed outdoors, the temperature of the conventional LED display will be very high. To achieve rapid heat dissipation, air conditioners or fans will be installed.

However, our outdoor energy-saving aluminum screen self-cooling technology is mature, no need to install air conditioning fans.

(4)Low contrast resolution

Low contrast will cause the brightness and level of the picture is not rich enough, so the picture is not good, which is not as good as the LCD splicing screen.

3.The difference between LCD and LED

1. The power consumption ratio of the LED display to the LCD display is about 1:10, So the LED display is more energy-efficient.

The LCD display composed of liquid crystals, which are a substance between solid and liquid.As the LCD display cannot emit light by itself, and it can only be illuminated with the help of an additional light source.

The LCD display has a backlight layer and a liquid crystal layer, and then the thickness of LCD display will be thicker than the LED display.

Moreover,the principle of the LCD display brightness, they are realized by the brightness of the backlight tube behind the panel. Therefore, the lamp tube needs to be designed more so that the light will be uniform. But the more lamps are used, the more increasing power consumption.

The LED display composed of light-emitting diodes,which are self-luminous and each pixel can project light of the three primary colors of red, green and blue, so the display effect is more vivid and full.

Since the LED lamp is very sensitive to the passage of current, a very small current can make it emit light, and it has a long life. It flickers for a long time without damage.

Each LED pixel works independently, and then light up some LED pixels individually, so the power consumption of the LED display will be lower than the LCD display.

difference of LCD and LED

2. LED provides a view of 160 ° wide.

The size of the viewing angle directly determines the number of the screen audience,so the larger the better.The size of the viewing angle is mainly determined by the packaging method of the core.

The viewing angle is the angle between the two viewing directions and the normal direction of the same plane when the brightness of the viewing direction drops to 1 / 2 of the normal brightness of the LED display screen.

It is divided into horizontal and vertical angle of view, which is also called half power angle.The angle of view can be measured with professional instruments.

3. LED display can display all kinds of text, numbers, color images and animation information, and can play TV, video, VCD, DVD and other color video signals.

Therefore, it is widely used in stadiums, airports, stations, banks, hospitals, public squares, commercial places, residential communities and so on. The LED display includes synchronous display and asynchronous display.

The asynchronous display is graphic LED display. It can display text, graphics, pictures and other information.The graphic LED display can be displayed offline.

The synchronous display is video LED display. It can display all kinds of information in real time and synchronously, such as two-dimensional or three-dimensional animation, video, TV, video disk, live scene and so on.

4. LED has a higher refresh rate and better performance in video.

LED and LCD have different light emitting principles. The pixels of LCD can be regarded as separate switches. Since the liquid crystal itself does not emit light, the LCD screen needs another backlight source. Only perform a refresh operation to display a stable image. The LCD screen refreshes the image at a constant frequency. A lower refresh rate, not less than 24Hz, can ensure the smoothness of the image.

LED is Light Emitting Diode, no need background light source, and each pixel is a light-emitting point; LED dot matrix and PC panel are composed of red, blue, white, and green to display text and pictures, animation, video, content display screen.

It uses low-voltage scanning drive, it has: high brightness, miniaturization, long life, low operating voltage, low power consumption, stable performance and impact resistance.

LED has a higher refresh rate. On the other hand, because there is no backlight, it is better in black display. The display screen is bright in color and strong in three-dimensionality. It is as static as an oil painting and as moving as a movie.

5. The reaction speed of each unit element of the LED display is 1000 times faster than the LCD liquid crystal screen.

According to the use environment, LED display screen is divided into indoor display screen and outdoor display screen.

The brightness of the indoor LED display is generally between 600~1000nits. The outdoor LED display has a high brightness, around 4500~7000nits. Even under strong sunlight, the content played on the LED display can be seen clearly.

The brightness of LCD liquid crystal screen is far lower than the LED display, even the brightness of the LCD liquid crystal screen used in the high-end market can only reach 700nits.

In addition, because of the high waterproof performance, the strong anti-ultraviolet material and the protection level above IP65, the outdoor LED display can be used in various harsh natural environments such as high temperature, heavy rain, typhoon, thunder and lightning, and low temperature.

Even in a low temperature of minus 40 degrees, the LED display can still operate stably. it is obvious that the application environment of LED display screens is far wider than the LCD  liquid crystal  screen.

6. The LED display can be a seamless whole screen, while the LCD screen needs to be spliced and has large gaps

LED display in the indoor small screen, many customers will choose LCD screen splicing to save costs.

But the brightness of LCD can not be very high, the most important thing is that it can not be as free and seamless as LED.

The above is a brief introduction to the difference between LED display and LCD screen.

When choosing a display device, you can choose according to multiple criteria such as use, viewing distance, installation occasions, etc.

In conclusion, the difference between LCD and LED are varies from the displaying performance, parameters, structures, functions and so on. If you do not know which product to choose, you can directly consult us, will give a specific plan.
