A 16:9 aspect ratio LED display has a width-to-height ratio of 16:9, or about 1.78:1. Common examples include 1920 × 1080 (Full HD) and 3840 × 2160 (4K UHD).
Aspect ratio and resolution are different. Aspect ratio defines the screen shape, while resolution defines the number of pixels. A 16:9 LED display can use different resolutions depending on its screen size and pixel pitch.
For an LED wall, the final 16:9 size depends on the cabinet dimensions and cabinet layout. Pixel pitch then determines the pixel density and viewing distance. These factors should be considered together when selecting a 16:9 LED display.
Table of Contents
Quick Answer
- A 16:9 aspect ratio LED display has a width-to-height ratio of 16:9, making it a common choice for modern widescreen video content.
- Common resolutions for a 16:9 aspect ratio LED display include 1920 × 1080 (Full HD), 3840 × 2160 (4K UHD), and 7680 × 4320 (8K UHD).
- 16:9 LED wall dimensions vary by application and cabinet configuration, with examples ranging from 2.4 m × 1.35 m to 8 m × 4.5 m.
- Choose a 16:9 aspect ratio LED display for standard widescreen content. Consider 4:3, 21:9, 9:16, or a custom screen ratio when the content, installation space, or application requires it.
1. What Is Screen Aspect Ratio?
Screen aspect ratio describes the proportional relationship between a screen’s width and height. It is written as two numbers separated by a colon, such as 16:9, 4:3, 16:10, or 21:9.
For an LED display, aspect ratio defines the shape of the screen, not its actual physical size. A 16:9 LED screen can be 2.4 m × 1.35 m, 4 m × 2.25 m, or much larger while keeping the same width-to-height proportion.
1.1 Aspect Ratio vs Screen Size
Aspect ratio defines the shape of an LED display, while screen size defines how large it is.
| Aspect Ratio | Screen Size |
| Defines the width-to-height proportion | Defines the physical dimensions |
| Expressed as 16:9, 4:3, 21:9 , etc. | Expressed as width × height or diagonal size |
| Determines the screen’s shape | Determines the physical space the display occupies |
| Does not define the actual screen size | Does not define the aspect ratio by itself |
| Can remain the same across different display sizes | Changes with the actual display dimensions |
| Example: 16:9 | Example: 4 m × 2.25 m |
For example, a 110-inch LED display and a 220-inch LED display can both use a 16:9 aspect ratio. Their proportions are the same, but their physical dimensions and pixel counts are different.
For an LED display project, choosing a 16:9 ratio is only the starting point. The final screen should also be based on the installation space, required dimensions, viewing distance, pixel pitch, content resolution, and LED cabinet size.
In short: aspect ratio defines the shape; screen size defines the physical size.
1.2 Why Aspect Ratio Matters for LED Displays?
Aspect ratio affects how content fits an LED screen and how the display is planned.
Content compatibility – Matching the screen ratio to the source content reduces unnecessary scaling, cropping, or black bars.
Screen dimensions – The selected ratio determines the relationship between the screen’s width and height.
LED wall layout – For LED displays, the target ratio affects cabinet quantity and cabinet configuration.
1.3 Common Screen Aspect Ratios
Different aspect ratios are used for different types of content and display layouts.
| Aspect Ratio | Screen Shape | Typical Use |
| 4:3 | Standard | Legacy content and special-purpose displays |
| 16:9 | Widescreen | Video, presentations, conferences, events, and LED video walls |
| 16:10 | Slightly taller widescreen | Computing and productivity applications |
| 21:9 | Ultra-wide | Panoramic and immersive displays |
| 32:9 | Super ultra-wide | Panoramic and multi-window content |
① 4:3 Aspect Ratio
The 4:3 ratio was widely used in first-generation televisions, projectors, and data monitors. While its usage has dropped significantly, it still appears in specific environments.
Today, 4:3 serves more as a legacy or special-purpose display ratio rather than a universal deployment option.
② 16:9 Aspect Ratio — Current Industry Standard
The 16:9 aspect ratio means 16 units of width for every 9 units of height, or approximately 1.78:1. It is widely used for modern video content and LED displays.
Common 16:9 resolutions include 1280 × 720, 1920 × 1080, 2560 × 1440, 3840 × 2160, and 7680 × 4320.
| Resolution | Common Format |
| 1280 × 720 | HD |
| 1920 × 1080 | Full HD |
| 2560 × 1440 | QHD |
| 3840 × 2160 | 4K UHD |
| 7680 × 4320 | 8K UHD |
16:9 is an aspect ratio, not a resolution. For example, both 1920 × 1080 and 3840 × 2160 use the same 16:9 shape, but 4K UHD has four times as many pixels as Full HD.
For an LED display, the final pixel resolution also depends on the screen size and pixel pitch, not just the aspect ratio.
③ 16:10 Aspect Ratio
A 16:10 display is slightly taller than a 16:9 display. It is common in computer monitors and applications where additional vertical workspace is useful.
Because standard video content is often produced in 16:9, displaying it on a 16:10 screen may require scaling or leave unused space, depending on how the content is processed.
④ 21:9 Aspect Ratio
A 21:9 display provides a wider format than 16:9 and is often used for panoramic or immersive content. It can create a strong visual effect, but standard 16:9 content may need to be scaled or displayed with unused screen space.
⑤ 32:9 Aspect Ratio — Ultra-Wide Commercial Panoramic Format
A 32:9 display is an ultra-wide format with the same overall proportion as two 16:9 screens placed side by side. It is suitable for panoramic visuals, wide data displays, and multi-window content.
For most standard video content and LED display projects, 16:9 remains the most practical format when the source material is primarily produced in 16:9. The following sections explain how to calculate 16:9 screen dimensions, understand 16:9 resolutions, and configure a 16:9 LED display.
2. What Does a 16:9 Aspect Ratio Mean for LED Displays?
A 16:9 aspect ratio means an LED display is 16 units wide for every 9 units high, or approximately 1.78:1.
For an LED display, 16:9 defines the width-to-height proportion, not the physical screen size or resolution. For example, both 4 m × 2.25 m and 6.4 m × 3.6 m LED displays have a 16:9 ratio.
2.1 16:9 Aspect Ratio vs Resolution
16:9 is an aspect ratio, not a resolution. Different resolutions can use the same 16:9 proportion.
| Resolution | Aspect Ratio | Common Format |
| 1280 × 720 | 16:9 | HD |
| 1920 × 1080 | 16:9 | Full HD |
| 2560 × 1440 | 16:9 | QHD |
| 3840 × 2160 | 16:9 | 4K UHD |
| 7680 × 4320 | 16:9 | 8K UHD |
For example, 1920 × 1080 and 3840 × 2160 are both 16:9, but 3840 × 2160 contains four times as many pixels.
For an LED wall, the final pixel resolution depends on the screen dimensions and pixel pitch. A smaller pixel pitch provides more pixels across the same physical screen size.
2.2 How to Calculate a 16:9 LED Display Size
You can calculate the dimensions of a 16:9 display using the following formulas:
Height = Width × 9 ÷ 16
Width = Height × 16 ÷ 9
For example, if an LED display needs to be 4 m wide:
4 × 9 ÷ 16 = 2.25 m
So the target dimensions are 4 m × 2.25 m.
However, LED walls are assembled from individual cabinets, so the final dimensions may not match the calculated ratio exactly. Cabinet dimensions, cabinet quantity, and installation requirements all affect the final screen size.
For this reason, a 16:9 LED display should be designed around both the target aspect ratio and the available LED cabinet configuration.
3. Why Is 16:9 the Standard Aspect Ratio for LED Displays?
16:9 is widely used for LED displays because it matches most modern widescreen video content and common HD, 4K, and 8K formats. It is also a familiar format for content creators, video processors, and LED display designers.
(1) Compatibility with Modern Video Content
Most mainstream video content uses a 16:9 format, including online videos, presentations, corporate content, live event feeds, and broadcast sources.
When a 16:9 LED display plays 16:9 content, the image can fill the screen without changing its original proportions. This avoids unnecessary cropping, stretching, or black bars.
(2) Support for HD, 4K, and 8K Content
Common resolutions such as 1280 × 720, 1920 × 1080, 2560 × 1440, 3840 × 2160, and 7680 × 4320 all use the 16:9 ratio.
It is important to distinguish aspect ratio from resolution. A 16:9 LED display can use different resolutions depending on its screen size and pixel pitch. For example, 1920 × 1080 and 3840 × 2160 are both 16:9, but they contain different numbers of pixels.
(3) Easier Content Production
16:9 gives content teams a standard canvas for videos, presentations, graphics, and advertisements. Content can be prepared for the LED display without creating a separate layout for an unusual screen shape.
This is especially useful for LED displays used for presentations, video playback, and live events, where content is frequently supplied in standard widescreen formats.
(4) Practical LED Wall Configuration
A 16:9 LED wall is easy to plan because the target width and height can be calculated in advance. The final dimensions, however, depend on the LED cabinet size and layout.
For example, a theoretical 16:9 screen may have dimensions of 4 m × 2.25 m, but the actual LED wall may need to be adjusted to fit the available cabinet configuration and installation space.
For projects that mainly use standard widescreen content, 16:9 is a practical choice. Projects with unusually wide spaces or creative content may benefit from 21:9, 32:9, or a custom aspect ratio instead.
4. How to Calculate 16:9 Screen Dimensions?
To calculate 16:9 screen dimensions, keep the width-to-height ratio at 16:9.
If you know the width:
Height = Width × 9 ÷ 16
If you know the height:
Width = Height × 16 ÷ 9
For example, if you need a 4 m wide 16:9 LED display:
4 × 9 ÷ 16 = 2.25 m
The theoretical screen size is 4 m × 2.25 m.
4.1 16:9 Screen Dimensions Chart
The same formula works for meters, feet, inches, or other units.
| Width | Height | Aspect Ratio |
| 2.4 m | 1.35 m | 16:9 |
| 3.2 m | 1.8 m | 16:9 |
| 4 m | 2.25 m | 16:9 |
| 4.8 m | 2.7 m | 16:9 |
| 6.4 m | 3.6 m | 16:9 |
| 8 m | 4.5 m | 16:9 |
These are theoretical dimensions based on the 16:9 ratio.
For readers working in imperial units, here are the same dimensions in feet and inches:
| Width (ft/in) | Height (ft/in) | Width (m) | Height (m) |
|---|---|---|---|
| 7'10" | 4'5" | 2.4 m | 1.35 m |
| 10'6" | 5'11" | 3.2 m | 1.8 m |
| 13'1" | 7'5" | 4 m | 2.25 m |
| 15'9" | 8'10" | 4.8 m | 2.7 m |
| 21'0" | 11'10" | 6.4 m | 3.6 m |
| 26'3" | 14'9" | 8 m | 4.5 m |
4.2 How to Calculate a 16:9 LED Wall?
For an LED wall, the calculated size is a target rather than the final physical dimension. LED walls are built from cabinets, so the cabinet width, height, and layout affect the final screen size.
For example, a target of 4 m × 2.25 m has an exact 16:9 ratio. If the selected cabinets cannot form these dimensions, the final LED wall may need to be adjusted slightly.
The practical process is:
Target size → LED cabinet configuration → Final screen dimensions
4.3 How Does Pixel Pitch Affect 16:9 Screen Size?
Pixel pitch determines how many pixels fit into a given physical area. For the same pixel resolution, a smaller pixel pitch produces a smaller screen, while a larger pixel pitch requires more physical space.
For example, a 1920 × 1080 LED display with a 2.5 mm pixel pitch has a theoretical active area of:
1920 × 2.5 mm = 4.8 m
1080 × 2.5 mm = 2.7 m
So the theoretical display size is 4.8 m × 2.7 m, which maintains the 16:9 ratio.
In a real LED project, the final dimensions also depend on the LED module, cabinet size, and cabinet configuration.
5. What Are the Common 16:9 LED Display Sizes?
Common 16:9 LED display sizes include 2.4 × 1.35 m, 3.2 × 1.8 m, 4 × 2.25 m, 4.8 × 2.7 m, 6.4 × 3.6 m, and 8 × 4.5 m. These dimensions follow the 16:9 width-to-height ratio and provide a starting point for LED wall planning.
The 16:9 format is also used in established widescreen video standards. The ITU-R BT.1729 recommendation defines a reference test pattern for digital television in 16:9 and 4:3 aspect ratios.
| Width | Height | Area | Typical Application |
| 2.4 m | 1.35 m | 3.24 m² | Meeting rooms |
| 3.2 m | 1.8 m | 5.76 m² | Conference rooms, retail |
| 4 m | 2.25 m | 9 m² | Corporate displays, events |
| 4.8 m | 2.7 m | 12.96 m² | Stage backdrops |
| 6.4 m | 3.6 m | 23.04 m² | Large venues |
| 8 m | 4.5 m | 36 m² | Events, large video walls |
These are theoretical 16:9 screen dimensions. The final size of an LED display depends on the cabinet dimensions, cabinet layout, and installation space.
5.1 How to Choose the Right 16:9 LED Display Size?
Choose the screen size based on viewing distance, installation space, content, and pixel pitch.
For close viewing, a fine-pitch LED display can provide a clearer image. As viewing distance increases, a larger pixel pitch may be suitable. Pixel pitch and viewing distance should therefore be considered together when selecting an LED display.
5.2 Can an LED Display Be Exactly 16:9?
Not always. An LED wall is assembled from individual cabinets, so the cabinet dimensions and layout affect the final physical size.
For example, the target size may be 4 m × 2.25 m, but the selected cabinets may produce slightly different dimensions. A small adjustment may be needed to create a practical cabinet configuration.
If the display mainly shows 16:9 video content, keeping the LED wall close to the source ratio helps reduce cropping, stretching, and unused screen space.
6. Aspect Ratio 4:3 vs 16:9 in LED Display
For most new LED display projects, 16:9 is the more practical choice when the screen will mainly show modern video, presentations, or other widescreen content. A 4:3 LED display can still make sense when the available space or existing content requires a more square format.
| Factor | 4:3 Aspect Ratio | 16:9 Aspect Ratio |
| Screen shape | More square | Widescreen |
| Modern video content | May require scaling or cropping | Fits naturally |
| HD and 4K content | Less suitable | Well matched |
| Legacy 4:3 content | Good fit | May require adjustment |
| LED display applications | Specific projects | More common |
| New LED projects | Suitable for specific needs | Usually preferred |
6.1 4:3 vs 16:9 for LED Display Content
The main difference is how the screen matches the content source.
Most modern video is produced in 16:9, so a 16:9 LED display can show it without changing the original proportions. A 4:3 screen may require scaling, cropping, or unused space when displaying widescreen content.
If your LED display will mainly show presentations, advertising videos, live feeds, or standard HD and 4K content, 16:9 is generally the better match.
6.2 When Should You Choose 4:3 Instead?
Choose a 4:3 LED display when the existing content, installation space, or visual design specifically requires the format.
For example, a replacement display may need to match an existing 4:3 layout, or a custom installation may have limited horizontal space. In these cases, forcing a 16:9 layout can create unnecessary cropping or unused areas.
6.3 Is 16:9 Always Better Than 4:3?
No. The better aspect ratio depends on the content and installation requirements.
For a new LED display using modern widescreen content, 16:9 is usually the safer choice. For legacy content or a space designed around a 4:3 format, 4:3 may be more appropriate.
Before choosing the aspect ratio, check the source content, available installation area, viewing distance, and LED cabinet configuration.
7. How Does Pixel Pitch Affect a 16:9 LED Display?
Pixel pitch affects the image detail and viewing distance of a 16:9 LED display. It is the distance between two adjacent LED pixels, measured in millimeters. A smaller pixel pitch means higher pixel density and better detail at close viewing distances.
The 16:9 aspect ratio defines the screen’s width-to-height proportion. Pixel pitch is a separate specification.
7.1 Choosing the Right Pixel Pitch for 16:9 LED Display
Choose the pixel pitch based on viewing distance, content, and application.
For conference rooms and close-viewing spaces, P1.5, P1.8, and P2.5 can provide clear text and graphics. For stages, exhibitions, and larger venues, P2.9, P3.9, P4.8, or larger pitches may be suitable.
There is no single “best” pixel pitch for every 16:9 LED display. Choose it based on how far viewers will sit or stand from the screen and how much detail the content requires. For more information, see our guide to LED display pixel pitch.
7.2 Does Pixel Pitch Change the 16:9 Aspect Ratio?
No. Pixel pitch does not change the 16:9 aspect ratio.
A P2.5 LED wall and a P3.9 LED wall can both have a 16:9 layout. The aspect ratio determines the screen shape, while pixel pitch determines the spacing between pixels and affects pixel density.
For example, a 4.8 m × 2.7 m LED wall remains 16:9 whether it uses P2.5 or P3.9.
8. How to Build a 16:9 LED Wall?
A 16:9 LED wall is built by combining LED cabinets into a screen that matches the required width-to-height ratio. The final dimensions depend on the cabinet size and layout.
8.1 LED Cabinet Size and Layout
The LED cabinet size determines the available screen dimensions and cabinet count. Common cabinet sizes include 500 × 500 mm and 500 × 1000 mm, but sizes vary by product.
For a 16:9 LED wall, arrange the cabinets to get as close as practical to the required ratio while fitting the installation space.
8.2 How Many LED Cabinets Do You Need?
Cabinet quantity depends on the screen dimensions and cabinet size.
For example, a 4 m × 2.5 m LED wall using 500 × 500 mm cabinets requires 8 cabinets wide × 5 cabinets high = 40 cabinets.
However, this layout has a 1.6:1 aspect ratio rather than exactly 16:9. If maintaining a 16:9 layout is important, the target dimensions should be adjusted based on the available cabinet size.
8.3 Does an LED Wall Have to Be Exactly 16:9?
No. The final LED wall may be slightly different from the theoretical 16:9 dimensions because it is assembled from fixed-size cabinets.
For example, 4 m × 2.25 m is exactly 16:9, but the available cabinets may not form those exact dimensions. A small adjustment to the width or height may be necessary.
If the screen mainly displays 16:9 content, keeping the final layout close to 16:9 helps reduce cropping and image distortion.
9. How to Choose the Right LED Screen Ratio?
The right LED screen ratio depends on the content you plan to display, the available installation space, and the application.
For most projects using modern video, presentations, or broadcast content, 16:9 is a practical starting point. It matches common HD and UHD formats, including 1920 × 1080 and 3840 × 2160. YouTube also uses 16:9 as the standard aspect ratio for its desktop video player.
9.1 Match the LED Screen Ratio to Your Content
The screen ratio should match the source content whenever possible. A 16:9 LED display works well with standard widescreen video, presentations, live feeds, and 4K content.
If the source uses 4:3, forcing it onto a 16:9 screen may leave unused space or require cropping. For custom content, the LED screen can also be designed around the content’s native ratio.
9.2 Consider the Installation Space
The available space can be more important than the standard ratio.
If the installation area is wide and shallow, a 21:9 or other custom LED screen ratio may make better use of the space. If the space is designed around standard widescreen content, 16:9 is usually easier to work with.
For LED walls, the final ratio can be adjusted because the screen is assembled from individual cabinets.
9.3 Choose the Ratio Based on the Application
Different applications may call for different screen ratios:
| Application | Suitable LED Screen Ratio |
| Conference rooms | 16:9 |
| Stage LED screens | 16:9 or custom |
| Digital signage | 16:9, 9:16, or custom |
| Broadcast and live video | 16:9 |
| Panoramic displays | 21:9 or custom |
| Legacy AV systems | 4:3 |
| Creative installations | Custom ratio |
For most new LED display projects, 16:9 is the safest starting point. Choose another ratio when the content, space, or visual design has a clear reason to do so.
10. When Should You Choose a 16:9 LED Display?
Choose a 16:9 LED display when your content is mainly widescreen video, presentations, or live feeds. It works particularly well with common HD, 4K, and 8K formats, so most content can fill the screen without cropping or stretching.
| Application | Why 16:9 Works |
| Conference rooms | Matches presentations and video conferencing |
| Stage LED screens | Fits videos, live feeds, and event content |
| Corporate displays | Works well with presentations and promotional videos |
| Broadcast and live events | Matches standard widescreen video |
| Commercial displays | Suitable for mainstream video advertising |
However, 16:9 is not suitable for every LED project. A 9:16 LED display may work better for portrait signage, while a 21:9 or custom ratio can make better use of an extra-wide installation area.
As a general rule, choose 16:9 when content compatibility is your priority. If the installation space or content has a specific shape, a custom LED screen ratio may be a better solution.
11. FAQs
There is no single standard size for a 16:9 LED screen. Any screen with a width-to-height ratio of 16:9 qualifies. Common examples include 2.4 × 1.35 m, 4 × 2.25 m, 4.8 × 2.7 m, and 6.4 × 3.6 m.
For an LED wall, the final dimensions depend on the cabinet size and configuration.
Yes. 1920 × 1080 has a 16:9 aspect ratio because 1920 ÷ 1080 = 1.777..., which is equivalent to 16:9.
It is commonly known as Full HD (1080p).
No. 4K describes resolution, not aspect ratio. The common 4K UHD resolution of 3840 × 2160 is 16:9, but other 4K formats can use different aspect ratios.
For LED displays, always check the actual pixel resolution and aspect ratio rather than assuming that 4K means 16:9.
Use the 16:9 ratio to calculate the missing dimension.
Height = Width × 9 ÷ 16
For example, a 4 m wide 16:9 LED wall would have a theoretical height of 2.25 m.
The final physical size may need to be adjusted to match the selected LED cabinet dimensions.
The number of cabinets depends on the target screen size and cabinet dimensions.
For example, a 4 m × 2.5 m LED wall using 500 × 500 mm cabinets requires 8 cabinets across and 5 cabinets high, or 40 cabinets in total.
The cabinet configuration should be confirmed before finalizing the screen dimensions.
No. Pixel pitch does not change the 16:9 aspect ratio.
The aspect ratio defines the screen's width-to-height proportion, while pixel pitch defines the distance between adjacent LED pixels. A P2.5 or P3.9 LED wall can both be built in a 16:9 layout.
Yes. LED displays can be built in custom aspect ratios because they are assembled from individual cabinets.
Custom ratios are useful when the installation space or content requires a specific screen shape, such as ultra-wide, portrait, square, or other non-standard formats.
Absolutely. Modular LED panels can be assembled to achieve precise 16:9 sizes, especially in fixed installations for:
Boardrooms
Auditoriums
Large retail walls
Churches
Command centers
For most standard LED video walls, 16:9 is a practical aspect ratio because it matches common video, presentation, advertising, and 4K content. However, custom ratios may be better for vertical signs, panoramic screens, building facades, and creative stage designs.
16:9 is usually better for modern video playback, advertising, conference rooms, live events, and 4K LED displays. 4:3 may still work for older systems, control rooms, monitoring displays, or special spaces that need more vertical height.
12. Conclusion
A 16:9 aspect ratio is a good fit for LED displays used for widescreen video, presentations, live feeds, and 4K content. It matches common content formats and helps avoid unnecessary cropping or stretching.
For a 16:9 LED display, the final size and pixel pitch should match the installation space, viewing distance, and content requirements. UNIT LED can provide both standard 16:9 and custom LED display solutions.
Looking for a 16:9 LED display? Contact UNIT LED for a project-specific solution.
Related Posts

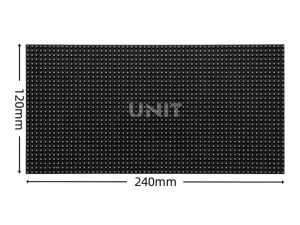

LED Screen Panel Size Guide: Module, Cabinet and Display Dimensions
LED screen panel size guide covering module dimensions, cabinet sizes, and pixel pitch. Choose the right LED display configuration.
LED Screen Size Guide: Dimensions, Resolution & Calculator
Learn how to choose the right LED screen size based on viewing distance, pixel pitch, resolution, aspect ratio, and cabinet dimensions.
LED Screen Resolution Guide: How to Calculate Pixel Resolution
Learn how LED screen resolution works, calculate pixel count, and choose the right pixel pitch and screen size for your LED display.
